Convergence tests

It is good idea to check the convergence of total energy with respect various parameters of our calculation e.g., kinetic energy cutoff, k-grid density, lattice constant etc.

Cutoff energy​

Here is shell script example to programmatically create input files and run calculations while varying certain parameter:

src/convergence/ecut.sh
#!/bin/sh
NAME="ecut"

for CUTOFF in `seq 10 5 50`
do
cat > ${NAME}_${CUTOFF}.in << EOF
System.CurrrentDirectory         ./
DATA.PATH                        /workspaces/openmx3.9/DFT_DATA19
System.Name                      Si_ecut_${CUTOFF}

Species.Number       1
<Definition.of.Atomic.Species
   Si   Si7.0-s2p2d1   Si_PBE19
Definition.of.Atomic.Species>

Atoms.Number  2
Atoms.SpeciesAndCoordinates.Unit   Ang # Ang|AU
<Atoms.SpeciesAndCoordinates           # Unit=Ang.
     1   Si   0.000000000000  0.000000000000  0.000000000000 2.0 2.0
     2   Si   1.357500000000  1.357500000000  1.357500000000 2.0 2.0
Atoms.SpeciesAndCoordinates>
Atoms.UnitVectors.Unit             Ang #  Ang|AU
<Atoms.UnitVectors                     # unit=Ang.
  0.000000000000  2.715000000000  2.715000000000
  2.715000000000  0.000000000000  2.715000000000
  2.715000000000  2.715000000000  0.000000000000
Atoms.UnitVectors>

scf.XcType                 GGA-PBE     # LDA|LSDA-CA|LSDA-PW
scf.SpinPolarization        Off        # On|Off|NC
scf.SpinOrbit.Coupling      Off        # On|Off, default=off
scf.ElectronicTemperature  300.0       # default=300 (K)
scf.energycutoff           ${CUTOFF}   # default=150 (Ry)
scf.maxIter                200         # default=40
scf.EigenvalueSolver       band        # Recursion|Cluster|Band
scf.lapack.dste            dstevx      # dstegr|dstedc|dstevx, default=dstegr
scf.Kgrid                 5 5 5     # means 4x4x4
scf.Mixing.Type           rmm-diisk    # Simple|Rmm-Diis|Gr-Pulay
scf.Init.Mixing.Weight     0.010       # default=0.30
scf.Min.Mixing.Weight      0.001       # default=0.001
scf.Max.Mixing.Weight      0.200       # default=0.40
scf.Mixing.History         15          # default=5
scf.Mixing.StartPulay       5          # default=6
scf.criterion             1.0e-9       # default=1.0e-6 (Hartree)
EOF

echo "Calculating ${NAME}_${CUTOFF}"
mpirun -np 4 /workspaces/openmx3.9/work/openmx ${NAME}_${CUTOFF}.in > ${NAME}_${CUTOFF}.out
grep -E "Utot\s+=" ${NAME}_${CUTOFF}.out

done

The script will print out total energy for each cutoff energy used. We can plot the result:

import numpy as np
import matplotlib.pyplot as plt

%matplotlib inline
plt.rcParams["figure.dpi"]=150
plt.rcParams["figure.facecolor"]="white"

ecut, etot = np.loadtxt("../src/convergence/ecut-vs-etot.dat", unpack=True)
plt.plot(ecut, etot, "o-", markersize=5)
plt.xlabel("$E_{cutoff}$ (Ry)")
plt.ylabel("$E_{tot}$ (Ry)")
plt.show()

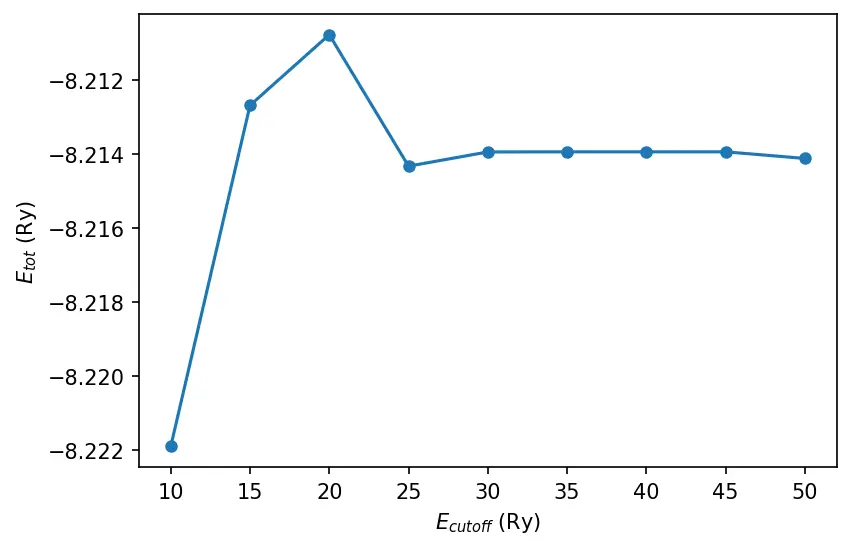

convergence-ecut
note

The cutoff energy in OpenMX is not for the basis set as in plane wave methods, but for the numerical integrations. Therefore the total energy does not have to converge from the upper energy region with respect to the cutoff energy like that of plane wave basis set.

k-grid density​

src/convergence/kgrid.sh
#!/bin/sh
NAME="Kgrid"

for GRID in `seq 2 10`
do
cat > ${NAME}_${GRID}.in << EOF
System.CurrrentDirectory         ./
DATA.PATH                        /workspaces/openmx3.9/DFT_DATA19
System.Name                      Si_${GRID}

Species.Number       1
<Definition.of.Atomic.Species
   Si   Si7.0-s2p2d1   Si_PBE19
Definition.of.Atomic.Species>

Atoms.Number  2
Atoms.SpeciesAndCoordinates.Unit   Ang # Ang|AU
<Atoms.SpeciesAndCoordinates           # Unit=Ang.
     1   Si   0.000000000000  0.000000000000  0.000000000000 2.0 2.0
     2   Si   1.357500000000  1.357500000000  1.357500000000 2.0 2.0
Atoms.SpeciesAndCoordinates>
Atoms.UnitVectors.Unit             Ang #  Ang|AU
<Atoms.UnitVectors                     # unit=Ang.
  0.000000000000  2.715000000000  2.715000000000
  2.715000000000  0.000000000000  2.715000000000
  2.715000000000  2.715000000000  0.000000000000
Atoms.UnitVectors>

scf.XcType                 GGA-PBE     # LDA|LSDA-CA|LSDA-PW
scf.SpinPolarization        Off        # On|Off|NC
scf.SpinOrbit.Coupling      Off        # On|Off, default=off
scf.ElectronicTemperature  300.0       # default=300 (K)
scf.energycutoff           50          # default=150 (Ry)
scf.maxIter                200         # default=40
scf.EigenvalueSolver       band        # Recursion|Cluster|Band
scf.lapack.dste            dstevx      # dstegr|dstedc|dstevx, default=dstegr
scf.Kgrid                 ${GRID} ${GRID} ${GRID}     # means 4x4x4
scf.Mixing.Type           rmm-diisk    # Simple|Rmm-Diis|Gr-Pulay
scf.Init.Mixing.Weight     0.010       # default=0.30
scf.Min.Mixing.Weight      0.001       # default=0.001
scf.Max.Mixing.Weight      0.200       # default=0.40
scf.Mixing.History         15          # default=5
scf.Mixing.StartPulay       5          # default=6
scf.criterion             1.0e-9       # default=1.0e-6 (Hartree)
EOF

echo "Calculating ${NAME}_${GRID}"
mpirun -np 4 /workspaces/openmx3.9/work/openmx ${NAME}_${GRID}.in > ${NAME}_${GRID}.out
grep -E "Utot\s+=" ${NAME}_${GRID}.out

done
k, etot = np.loadtxt("../src/convergence/kgrid-vs-etot.dat", unpack=True)
plt.plot(k, etot, "o-", markersize=5)
plt.xlabel("k_grid")
plt.ylabel("$E_{tot}$ (Ry)")
plt.show()
convergence-kgrid

Lattice constant​

src/convergence/alat.sh
#!/bin/sh
NAME="alat"

for ALAT in `seq 5 0.1 6`
do
ALAT2=$(echo "scale=7;${ALAT}/2" | bc)
ALAT4=$(echo "scale=7;${ALAT}/4" | bc)
cat > ${NAME}_${ALAT}.in << EOF
System.CurrrentDirectory         ./
DATA.PATH                        /workspaces/openmx3.9/DFT_DATA19
System.Name                      Si_${ALAT}

Species.Number       1
<Definition.of.Atomic.Species
   Si   Si7.0-s2p2d1   Si_PBE19
Definition.of.Atomic.Species>

Atoms.Number  2
Atoms.SpeciesAndCoordinates.Unit   Ang # Ang|AU
<Atoms.SpeciesAndCoordinates           # Unit=Ang.
     1   Si   0.000000000000  0.000000000000  0.000000000000 2.0 2.0
     2   Si   ${ALAT4}        ${ALAT4}        ${ALAT4}       2.0 2.0
Atoms.SpeciesAndCoordinates>
Atoms.UnitVectors.Unit             Ang #  Ang|AU
<Atoms.UnitVectors                     # unit=Ang.
  0.000000000000  ${ALAT2}        ${ALAT2}
  ${ALAT2}        0.000000000000  ${ALAT2}
  ${ALAT2}        ${ALAT2}        0.000000000000
Atoms.UnitVectors>

scf.XcType                 GGA-PBE     # LDA|LSDA-CA|LSDA-PW
scf.SpinPolarization        Off        # On|Off|NC
scf.SpinOrbit.Coupling      Off        # On|Off, default=off
scf.ElectronicTemperature  300.0       # default=300 (K)
scf.energycutoff           50          # default=150 (Ry)
scf.maxIter                200         # default=40
scf.EigenvalueSolver       band        # Recursion|Cluster|Band
scf.lapack.dste            dstevx      # dstegr|dstedc|dstevx, default=dstegr
scf.Kgrid                 8 8 8     # means 4x4x4
scf.Mixing.Type           rmm-diisk    # Simple|Rmm-Diis|Gr-Pulay
scf.Init.Mixing.Weight     0.010       # default=0.30
scf.Min.Mixing.Weight      0.001       # default=0.001
scf.Max.Mixing.Weight      0.200       # default=0.40
scf.Mixing.History         15          # default=5
scf.Mixing.StartPulay       5          # default=6
scf.criterion             1.0e-9       # default=1.0e-6 (Hartree)
EOF

echo "Calculating ${NAME}_${ALAT}"
mpirun -np 4 /workspaces/openmx3.9/work/openmx ${NAME}_${ALAT}.in > ${NAME}_${ALAT}.out
grep -E "Utot\s+=" ${NAME}_${ALAT}.out

done
alat, etot = np.loadtxt("../src/convergence/alat-vs-etot.dat", unpack=True)
plt.plot(alat, etot, "o-", markersize=5)
plt.xlabel("$a_{lat}$ ($\\AA$)")
plt.ylabel("$E_{tot}$ (Ry)")
plt.show()

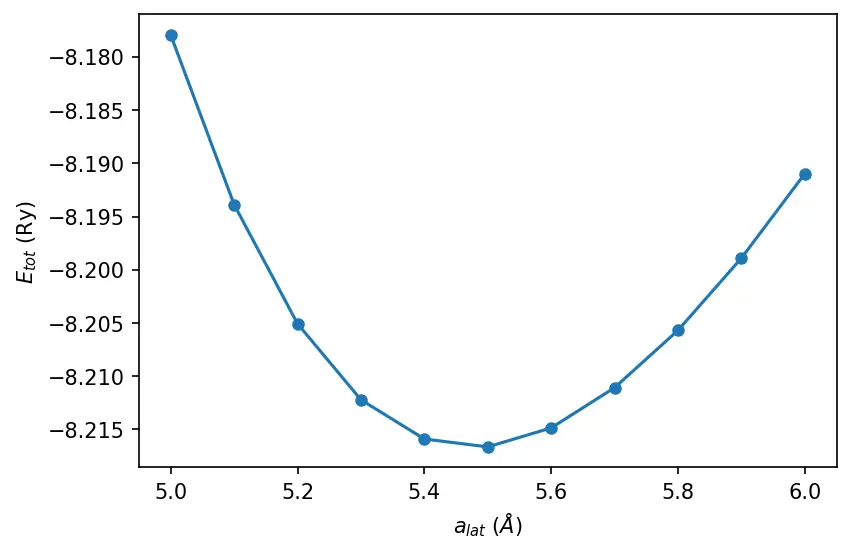

convergence-alat
